Thymus — spatial RNA + protein (CITE-seq)

• This tutorial runs LYNX on a multi-cellular, high-throughput mouse-thymus section that pairs spatial RNA (the reference modality) with protein abundance (CITE-seq) (the query modality).

• LYNX reconstructs denoised gene expression and infers the cortex → medulla axis with a principal curve, then discretizes it into zones.

import os
import numpy as np
import scanpy as sc
import squidpy as sq
import torch
import torch.nn as nn

from matplotlib import rcParams
rcParams.update({"figure.dpi": 120, "savefig.dpi": 300})
import lynx

/home/yinuo/Desktop/azizi_lab/IMS/env/lib/python3.9/site-packages/numba/core/decorators.py:282: RuntimeWarning: nopython is set for njit and is ignored
  warnings.warn('nopython is set for njit and is ignored', RuntimeWarning)

1. Load the paired RNA + protein modalities

Note: The sample paired Stereo-CITE-seq data has multicellular spatial resolution, with bins forming a standard Cartesian grid coordinates. We simply build a spatial graph connecting each bin to its neighbors (k=8).

n_subgraphs, k = 16, 8
n_hidden, n_latent = 32, 6
n_epochs, lr, patience = 500, 1e-2, 20

data_path = "../../data/thymus/"
sample_id = "Mouse_Thymus1"

adata_rna = sc.read_h5ad(os.path.join(data_path, sample_id, "adata_rna.h5"))
adata_protein = sc.read_h5ad(os.path.join(data_path, sample_id, "adata_protein.h5"))
adata_protein.var_names_make_unique()
cluster_key = "cell_type" if "cell_type" in adata_rna.obs.keys() else None

/home/yinuo/Desktop/azizi_lab/IMS/env/lib/python3.9/site-packages/anndata/_core/anndata.py:1756: UserWarning: Variable names are not unique. To make them unique, call `.var_names_make_unique`.
  utils.warn_names_duplicates("var")

2. Build the spatial hetero-graph, configure the model

Both modalities are measured on a multicellular spatial grid, so we set is_ref_grid / is_query_grid. Cell-interaction inference is left off here due to the lack of single-cell-resolution annotation.

graph_data = lynx.dataset.HeteroDataset(
    adatas_ref=adata_rna,
    adatas_query=adata_protein,
    n_subgraphs=n_subgraphs,
    k=k, is_weighted=True,
    cluster_key=cluster_key,
    is_query_grid=True,
    is_ref_grid=True,
    query="protein", query_proj_key="spatial",
    ref="rna", ref_proj_key="spatial",
)

train_configs = lynx.config.set_train_configs(
    n_epochs=n_epochs, lr=lr, patience=patience,
    device=torch.device("cuda"),
)
model_configs = lynx.config.set_model_configs(
    graph_data=graph_data,
    c_hidden=n_hidden, c_latent=n_latent,
    act=nn.SiLU(),
    infer_cell_interaction=False,
)

2026-06-24 23:56:27.718992: I tensorflow/core/platform/cpu_feature_guard.cc:210] This TensorFlow binary is optimized to use available CPU instructions in performance-critical operations.
To enable the following instructions: AVX2 FMA, in other operations, rebuild TensorFlow with the appropriate compiler flags.
2026-06-24 23:56:28.538734: W tensorflow/compiler/tf2tensorrt/utils/py_utils.cc:38] TF-TRT Warning: Could not find TensorRT

3. Train the model

model = lynx.model.HeteroAttnVGAE(model_configs, device=torch.device("cuda"))
model.fit(graph_data, train_configs, DEBUG=True)
res = model.evaluate(
    adata_rna, adata_protein,
    graph_data=graph_data,
    n_subgraphs=1,
    device=torch.device("cpu"),
)
adata_rna.layers["px"] = res["px"].copy()

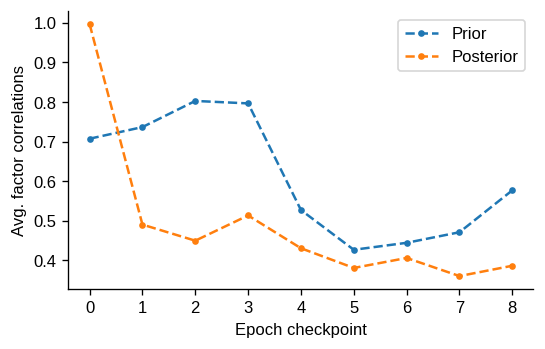

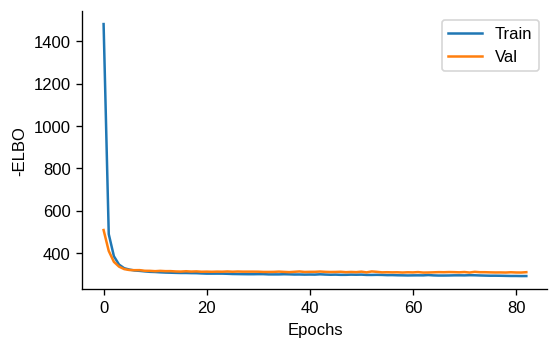

Epoch 81 train -ELBO: 292.705; val -ELBO: 309.381; val R2: 0.994; q(z) corr: 0.386; p(z) corr: 0.577:  16%|█▋        | 82/500 [01:07<05:43,  1.22it/s]
/home/yinuo/Desktop/azizi_lab/IMS/models/base_model.py:490: UserWarning: FigureCanvasAgg is non-interactive, and thus cannot be shown
  fig.show()
/home/yinuo/Desktop/azizi_lab/IMS/models/base_model.py:470: UserWarning: FigureCanvasAgg is non-interactive, and thus cannot be shown
  fig.show()

# Save results into a full h5ad (AnnData) carrying the latent embedding and the
# reconstructed gene expression (`layers["px"]`).
results_dir = "../../results/"
if not os.path.exists(results_dir):
    os.makedirs(results_dir, exist_ok=True)
adata_rna.write_h5ad(os.path.join(results_dir, "LYNX_thymus_rna.h5ad"))

Reconstruction quality

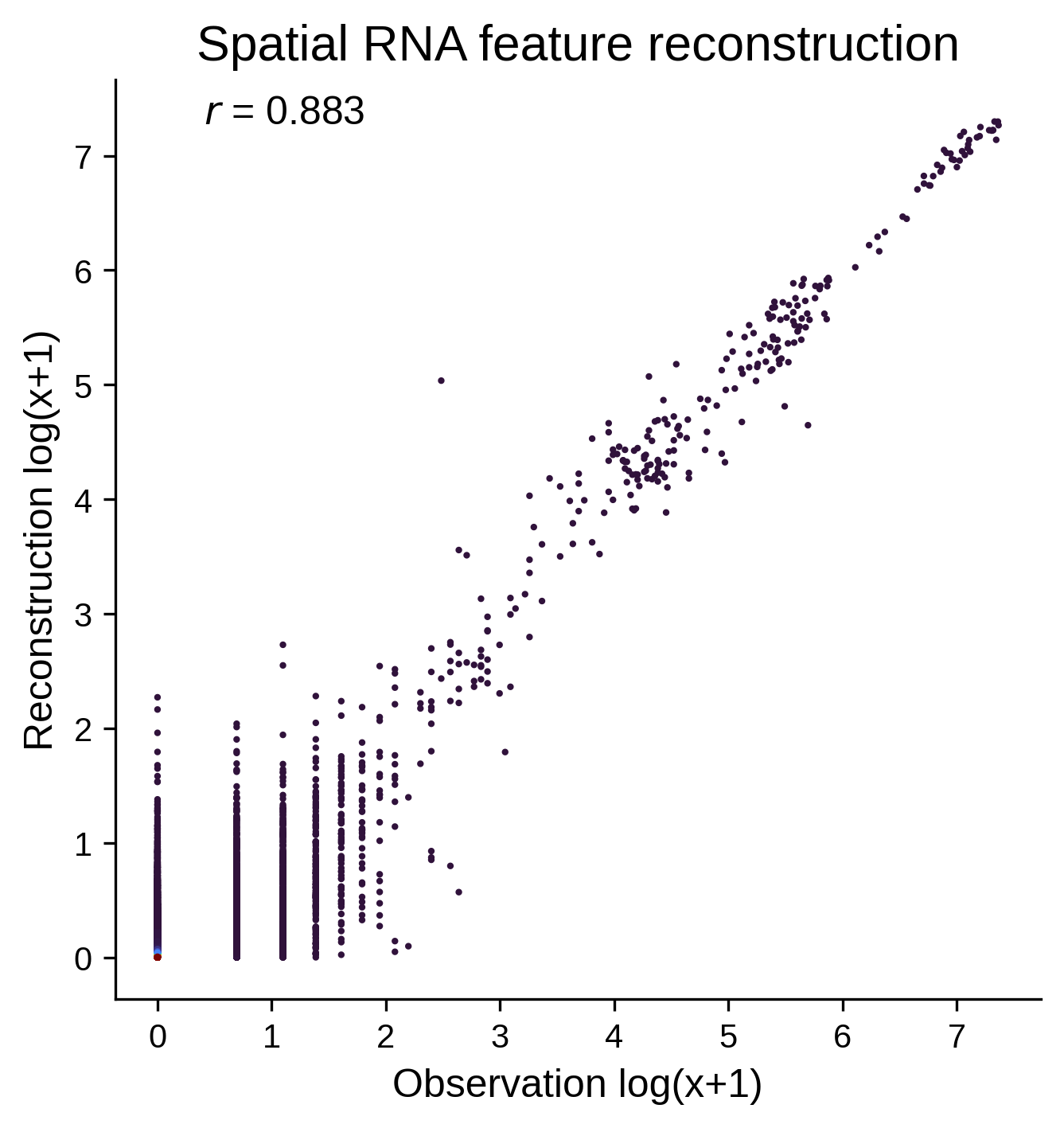

Observed vs. reconstructed gene expression should fall along the diagonal.

lynx.plot.disp_kde_scatter(
    adata_rna.X.flatten(),
    res.px.flatten(),
    xlabel=r"Observation log(x+1)",
    ylabel=r"Reconstruction log(x+1)",
    title="Spatial RNA feature reconstruction",
)

4. Load the pre-saved result snapshot

Training above requires the full (large) RNA / protein inputs and a GPU. For the downstream analysis we load a LYNX result snapshot — the same object the training step produces, carrying the latent embedding X_z and the spatial coordinates needed for the trajectory and zonation below.

results_dir = "../../results/"
adata_rna = sc.read_h5ad(os.path.join(results_dir, "LYNX_thymus_rna.h5ad"))

5. Trajectory inference (principal curve)

Fit a principal curve through the latent embedding and orient the cortex → medulla axis with a cortex marker (Dcn).

curve = lynx.trajectory.get_curve(adata_rna)
lynx.trajectory.compute_pseudotime(adata_rna, curve, root_marker="Dcn")

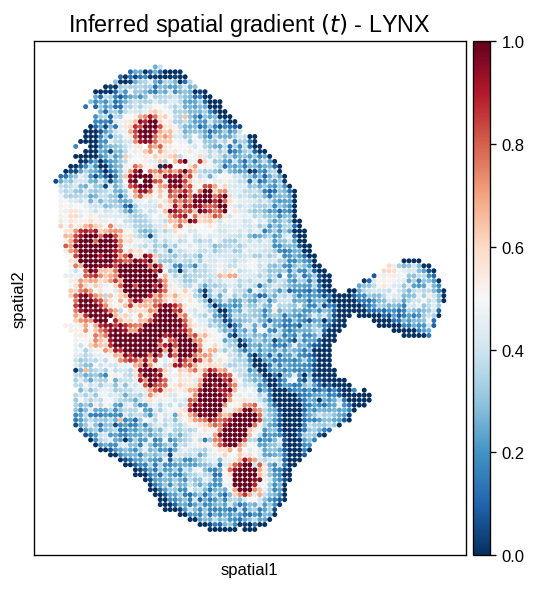

ax = sq.pl.spatial_scatter(
    adata_rna, color="t",
    cmap="RdBu_r", size=100, img=False, return_ax=True, title=None,
)
ax.set_title(r"Inferred spatial gradient $(t)$ - LYNX", fontsize=14)

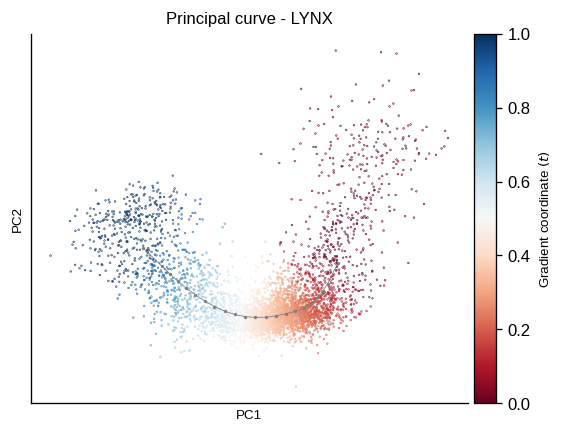

lynx.plot.disp_trajectory(
    adata_rna, cmap="RdBu",
    title="Principal curve - LYNX",
)

(2, 6)
(20, 6)
Computing pseudotime on principal curve...

6. Zonation

if "milestones_colors" in adata_rna.uns_keys():
    adata_rna.uns.pop("milestones_colors")

lynx.utils.get_zonations(adata_rna, n_zones=4)

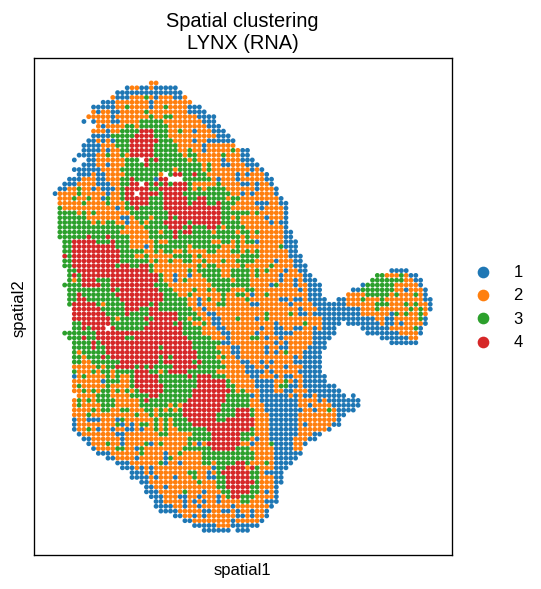

sq.pl.spatial_scatter(
    adata_rna, color="zone",
    size=100, img=False,
    title="Spatial clustering\nLYNX (RNA)",
)

/home/yinuo/Desktop/azizi_lab/IMS/env/lib/python3.9/site-packages/squidpy/pl/_spatial_utils.py:488: FutureWarning: The default value of 'ignore' for the `na_action` parameter in pandas.Categorical.map is deprecated and will be changed to 'None' in a future version. Please set na_action to the desired value to avoid seeing this warning
  color_vector = color_source_vector.map(color_map)
